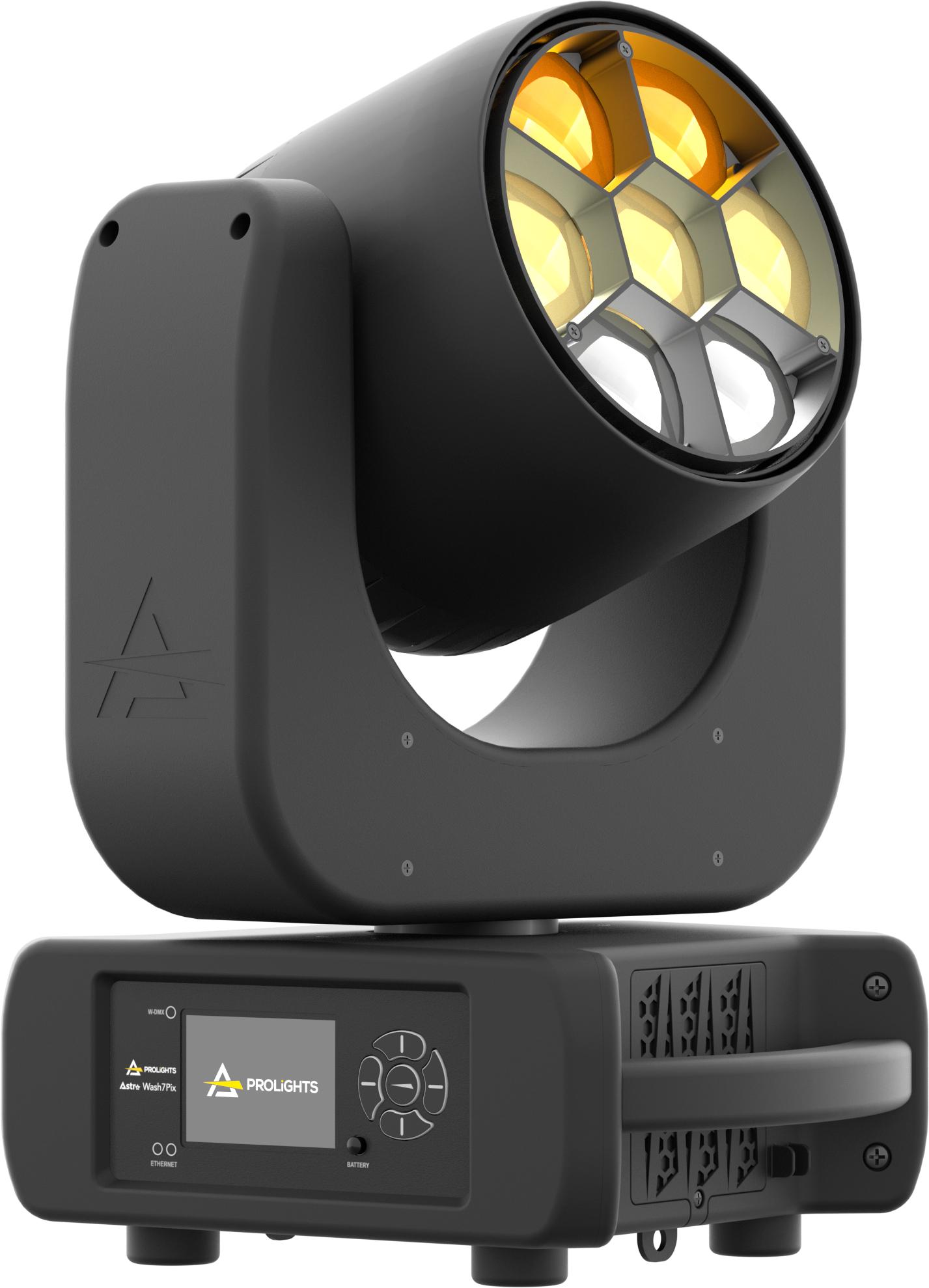

ASTRAWASH19PIX is a Beam Wash class LED floodlight designed specifically to become a “workhorse” in shows of any complexity, thanks to incredibly high brightness and a wide range of tools for creating effects.
The light source is 40-watt RGBW LEDs from OSRAM, and high-quality optics allows you to achieve beam angles in the range from 4 to 54, which allows you to use this spotlight both as a ray effects device and as a Wash class spotlight.
Astra Wash 19Pix supports the control of each LED segment individually, has a built–in library of pixel animation effects, and also provides ample opportunities for working with color – both with color and white. And all this is controlled by protocols such as DMX 512, RDM, Art- Net, sACN and W-DMX.
technical specifications:
Light
• Light source: 19X40W Osram Ostar RGBW LED
• Luminous efficiency: 5505 – 10143 lm with 3m at full brightness
• Illumination: 45146 – 1174 lux with 5 m
• Service life of the light source: > 50,000 hours
Optics
• Beam angle: 4°-54°
• Lens type: seamless optics with hexagonal segments
Colors
• Color mixing system: RGBW
• Color temperature: adjustable, green level control (+/-), halogen lamp emulation
• Color temperature range: 2800 – 10000 K
• Virtual color wheel
• Built-in dynamic pixel animation effects with adjustable speed
Dynamic effects
• Brightness control: 16-bit dimmer
• Pixel animation: built-in library of static and dynamic macros
• Effects generator: customizable background/effect colors, adjustable speed, direction
• A separate channel that controls the transition from white to any color; colors adjusted for the selected color temperature
Body
• Bracket fittings with Omega Quick Lock locks (without suspension clamp)
• Panorama U-turn (Pan): 540
• Tilt: 233
• Pan/Tilt resolution: 16 bits
• Automatic return to the set position when exposed to external influences
• Housing: aluminum frame with polycarbonate covers
• Body color code: RAL9004
Management
• Protocols: DMX 512, RDM, Art-Net, sACN, Klingnet, W-DMX
• Number of DMX control channels: 29/ 32/ 53
• Pixel animation effects: “Rings” and “Pixel to Pixel”
• Built-in W-DMX signal receiver from Wireless Solution
• The ability to configure using the RDM protocol
• High-resolution color LCD display with auto-rotation function
• Software update: via a special USB-DMX interface UPBOX2 (sold separately)
Electronics
• Linear dimmer 0 – 100%
• 4 types of dimming curves
• Strobe effect: mechanical, 1 – 30 Hz
• Non-volatile memory, setting settings even when disconnected from the power supply
• Operating temperature range: -10~+45 C
• Suppression of interference with photo and video cameras. PWM presets from 600 to 25000 Hz
Electrical parameters
• Operating voltage: 100 – 240 V, 50/60 Hz
• Power consumption at 230 V: 620 W
• Max. number of devices in one line (with end-to–end power transmission, 230 V) – no more than 4
• Power factor: 0.95
Physical parameters
• Type of cooling: forced, using fans
• Suspension and fixation: fasteners with Omega Quick Lock locks

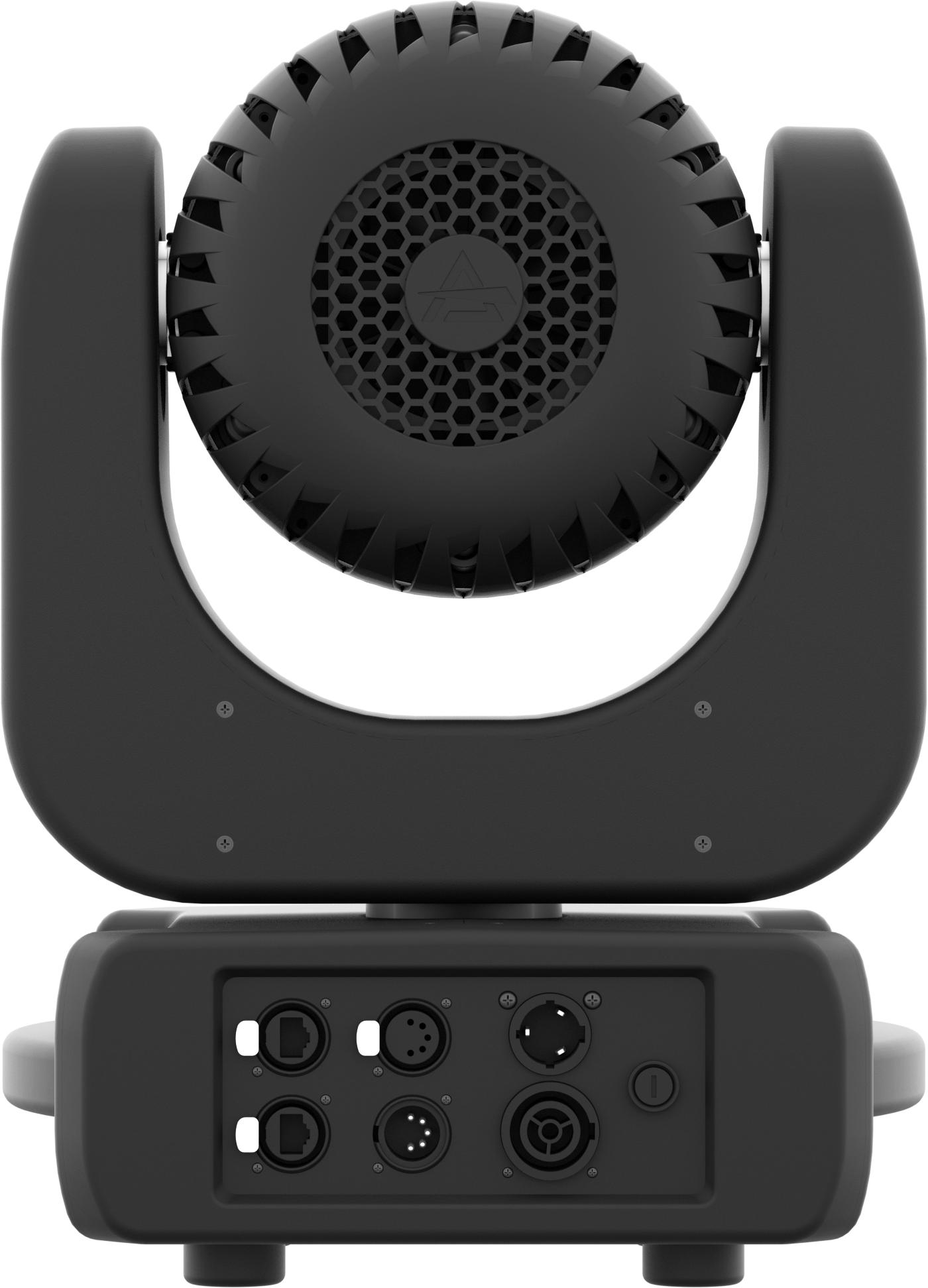

• Data connectors, input/output: Amphenol XLR 5P input/output
• Data connection: Neutrik RJ45 input/output
• Network connector: Neutrik PowerCon True 1 input/output
• Moisture protection Index (IP): 20
• Dimensions (WxHxD): 410x514x250mm
• Weight: 17.4 kg
The scope of delivery
• Astra Wash 19Pix Spotlight – 1 piece
• Network cable (Schuko – Neutrik PowerCon True 1 plug), 1.5 m – 1 pc
• Mounting bases with Quick Lock locks – 2 pcs
• User Manual (in English and Italian) – 1 pc
