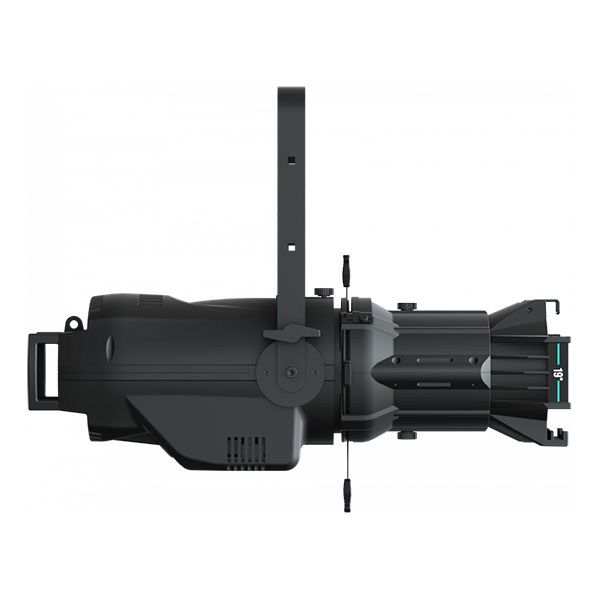

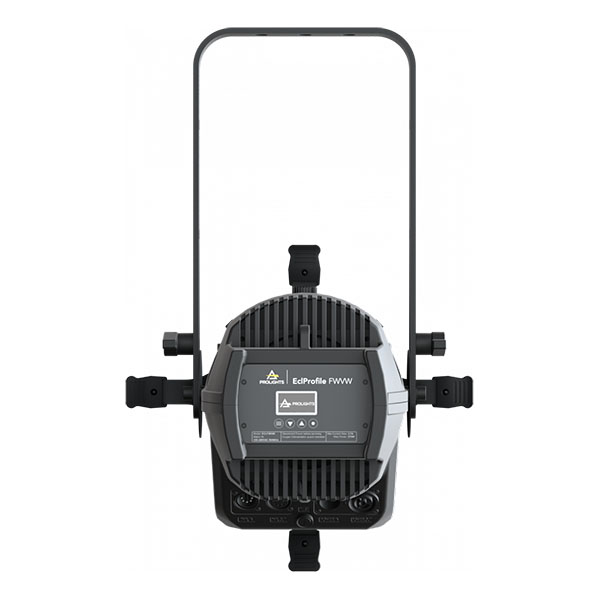

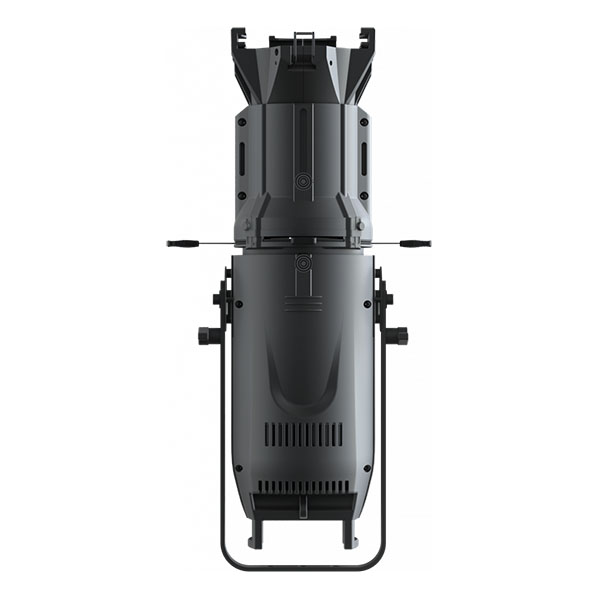

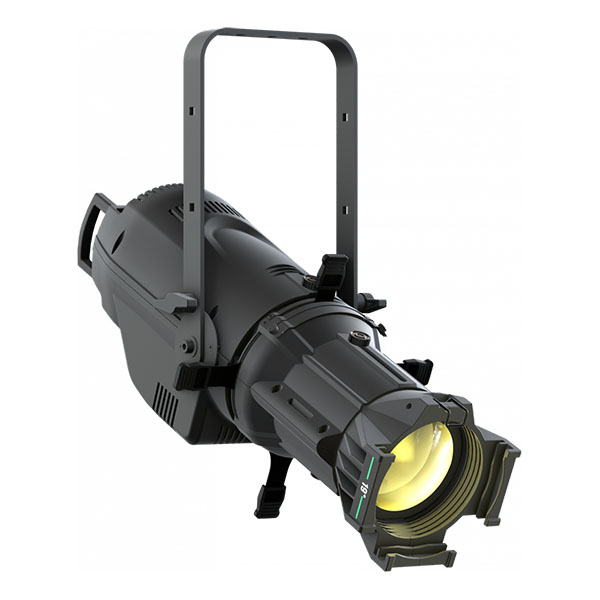

ECLPROFILE FWVW is a profile theatrical LED spotlight of white light with variable color temperature from 2700 to 5600 K from the ECLPROFILE series.
The ECLPROFILE FWVW spotlight is assembled in the same housing and is compatible with the same accessories as the ECLPROFILE CT+ with the ECLPROFILE FW. The difference between them is that the ECLPROFILE FWVW has customizable white colors from very warm 2700 K (like tungsten lamps) to cold 5600 K (daylight), while maintaining a very high luminous flux and color rendering index (CRI is almost 98 for warm and 97 for cold).
ECLPROFILE FWVW has a configurable PWM in the range of 600~25000 Hz, four dimming curves to choose from, fan control, which allows you to set it to silent operation for work in studios, on film sets or theaters.

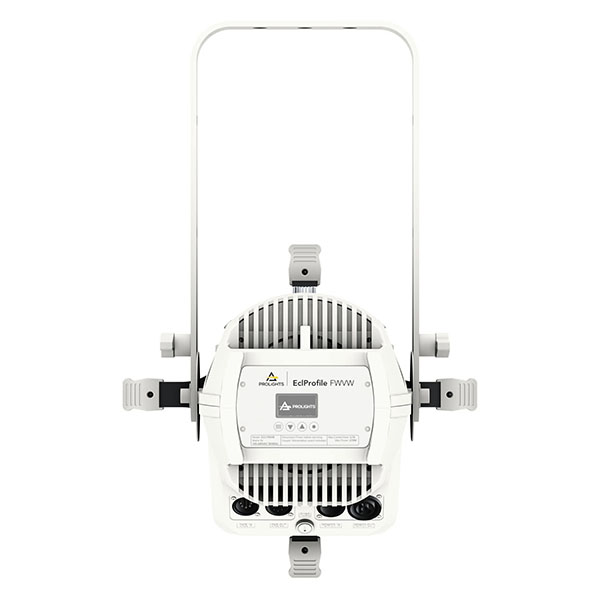

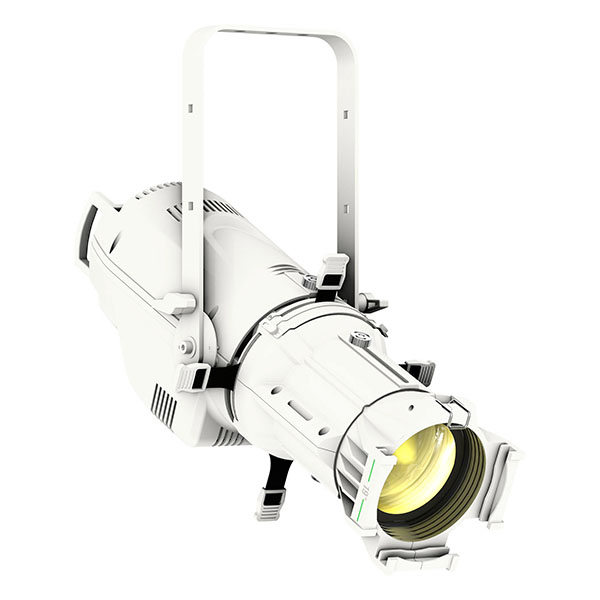

For the ECLPROFILE line, there is a wide range of fixed or variable focal length lenses that use high-definition HD optics, anti-glare lenses, and third-party accessories are also suitable. The body of the searchlights is black as standard, but it is also possible to order searchlights in white.
technical specifications:
Light
• Light source: 91x3w high brightness white LED module
• Color temperature: 2700 – 5600 K
• CRI: 97 (TU) – 97.4 (DY)
• R9: 91 (TU) – 96.2 (DY)
• Luminous efficiency: (26° TU) 3696 lm, (26° DY) 4406 lm, (26°) 7951 lm
• Brightness from 5 m: (26° TU) 1289 lux, (26° DY) 1524 lux, (26°) 2795 lux
• TM30 Rf: >95.5 (TU), >91.7 (DY), >93.2
• TM30 Rg: 102.4 (TU), <100.8 (DY), <103.2 • The service life of the light source: >50,000 hours
Optics
• Beam opening angle: 5°/10°/14°/19°/26°/36°/50°/70° ( fixed) and 15°-30 / 25°-50° (adjustable)
• Lens Type: HD high definition anti-glare lenses
• Focus: Manual
Colors
• Color mixing system: from warm to cold white
Dynamic effects
• Beam profiling system: cassette with 4 blades
• Gobo size: B (outer ⌀86mm, image ⌀ 64.5mm, thickness 1.1mm)
• Built-in library of presets for the dimmer
• Ability to set presets for dimmer and strobe manually
• Operating modes: 3 fan operation modes (High, Auto, Silent)
Body
• Housing material: Cast aluminum housing with long service life
• Body color: Black
Management
• Control protocols: DMX512, RDM
• The number of DMX channels consumed: 1 / 2 / 3 / 4 / 5 / 11 channels
• Access to settings via the RDM protocol
• Display: High resolution black OLED display
• Software update: via USB-DMX interface Upbox 2 (sold separately)
• Master/Slave Mode (Master/Slave)”: for synchronous operation of several devices in a line
Electronics
• Dimmer: linear electronic 0-100%
• Strobe light: 1~25 Hz (electronic)
• Dimming curves: 4 shapes of dimming curves to choose from
• Operating temperature range: -10° ~ +45°
• No interference with video cameras (flicker free technology)
• Configurable PWM: 600~25000 Hz
Electrical parameters
• Operating voltage: 100-240V – 50/60 Hz
• Power consumption: 265W
• Number of devices in 1 line when transferring power from device to device: no more than 11 devices at 230 V
• Power factor: 0.97
Physical parameters
• Cooling: forced (silent fan)
• Suspension: mounting lyres on the body
• Data Connectors: Amphenol XLR 5p IN/OUT
• Network connector: Neutrik PowerCon TRUE1 IN/OUT
• Moisture protection Index (IP): 20
• Dimensions (WxHxD): 265x259x540 mm
• Weight: 7.3 kg
